Biodegradable Film Blowing Machine

You can rest assured to buy customized Biodegradable Film Blowing Machine from KINGPLAST. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

KP-BD Biodegradable Film Blowing Machine

Optional Equipment:
1. Auto-loader
2. Corona treater
3. Rotary die head
4. Double winder
5. High speed screen changer
6. Online Printer

Ruian Doy Machinery Co.,ltd as a long-term development as the goal of the enterprise, we are more committed to creating an environmentally friendly film blowing machine, not only to meet the production needs of customers, but also to the world environmental protection to make a modest contribution. Any customer who needs Biodegradable film blowing machine, please contact us to obtain the configuration of the Biodegradable film blowing machine, or contact us to tell us your needs, we will recommend the right production model Biodegradable film blowing machine for you.All customer inquiries are addressed within a 24-hour timeframe.


Doy Biodegradable Film Blowing Machine parameter：

Doy Biodegradable film blowing machine is designed to produce biodegradable films, which are made from specific eco-friendly materials.    These materials include:

PLA (Polylactic Acid): A biodegradable and bioactive thermoplastic made from renewable resources like corn starch or sugarcane.    It's widely used as an alternative to traditional plastics.

PBAT (Polybutylene Adipate-co-Terephthalate): A biodegradable and compostable copolymer often used in combination with PLA to enhance flexibility and durability.

Starch: A natural polymer that can be modified to enhance biodegradability and other properties of the film.

Modified Biodegradable Raw Materials: This refers to any additional materials that have been treated or engineered to improve the biodegradability and performance of the film.

Biodegradable film blowing machine's primary function is to produce biodegradable films from these raw materials, which are more environmentally friendly than conventional plastic films.    The instruction and working process of  Biodegradable film blowing machine as follows:

Loading Raw Materials t PLA, PBAT, starch, and any modified biodegradable raw materials into the hopper

Extrusion: The raw materials are melted and homogenized in the extruder reach to die head .After add air from air blower ,tube film come out then pass to take up unit.

Take up is made of rubber roller ,embassy roller ,steel roller ,A-frame ,gusset .

Cooling: The film is immediately cooled down, which helps it solidify and maintain the desired shape.

Winding: The produced biodegradable film is wound into rolls, making it easy to handle and transport.

Quality Control: Throughout the process, quality control measures are implemented to ensure the film meets the required specifications, including thickness, strength, and other relevant properties.

Biodegradability: The resulting film, made from the specified biodegradable materials, will break down naturally in the environment over time, reducing its impact on the ecosystem.

Technical Parameters:

Model	KP-BD50	KP-BD55	KP-BD60
Suitable material	PO/PE/PLA+PBAT
Film width(mm)	600	800	1000
Max.Extrusion output(kg/hr)	45-60	60-100	70-120
Screw diameter(mm)	ф50	ф55	Ф60
Screw L/D length	32:1
Screw material	Bimetallic
Cylinder material	SACM-645/38CRMOALA
Driving motor (kw)	15	18.5	22
Die size(mm)	Ф60/100/120	ф80/120/150	Ф80/200/220
Air ring	1 ( three lip air ring)
Air blower(kw)	5.5kw	7.5kw	11kw
Roller width(mm)	700	900	1100
Height adjustable type	/
Take-up speed(m/min)	10-100	10-80	10-80
Take-up motor(kw)	1.5	1.5	2.2
Winder Type	Central winding，Center rewinder with air shaft ,control by inverter

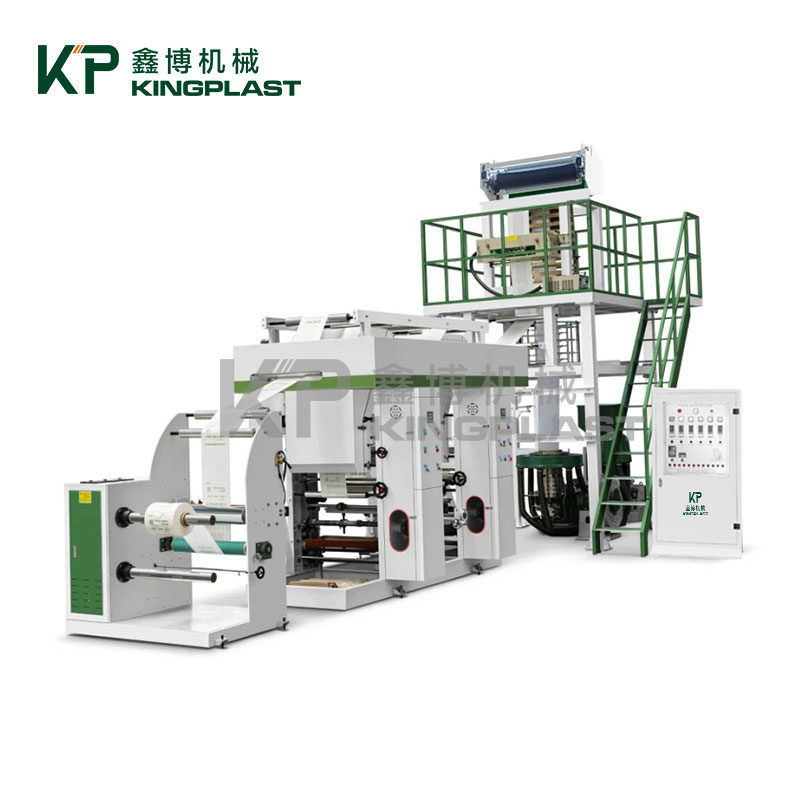

Sample picture
